Y pattern 3 way ball valve with stainless steel

Product number:904L

Nominal diameter:DN100

Pressure range:PN16

Operating temperature:-70℃～280℃

Body material:Body: 904L

Applicable medium:Liquid

Operation method:Body: 904L

Live Chat Get Latest Quotation
PDF Download

Y pattern 3 way ball valve with stainless steel

three ways ball valve manufacturer
3 way valve electric actuator

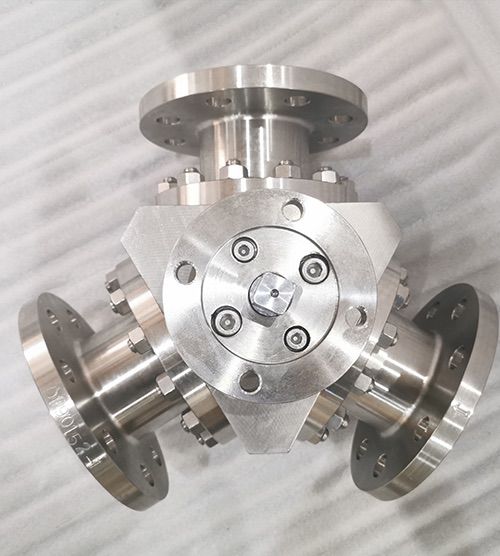

Name: Three Way Stainless steel Ball Valve
Material: Body/Ball:1.4408     Seat:PTFE
Nominal Pressure: PN16
Nominal Diameter: DN65
End Connection: RF
Operation: Bare Shaft
Valve type: Industrial Valve
Working Temp.: -60~+120℃
Design Standard: ISO 17292
Test / Inspection: ISO 5208
End Connection: EN 1902-

    PS: We also can do according to customer's requirements.

three ways ball valve manufacturer

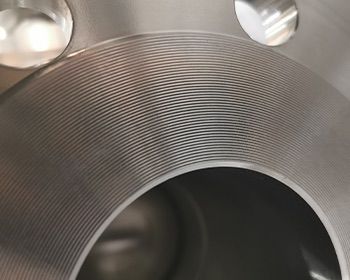

3 way ball valve high pressureFlange face finish


The ASME B16.5 code requires that the flange face(raised face and flat face) has a specific
roughness to ensure that this surface be compatible with the gasket and provide a high quality seal.

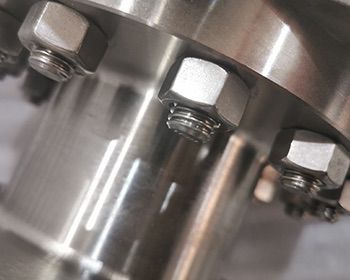

3 way ball valve electric actuatorStandard Bolts & Nuts


DBV ball valve adopts the standard bolts and nuts. It could extend the

valve longer service life.

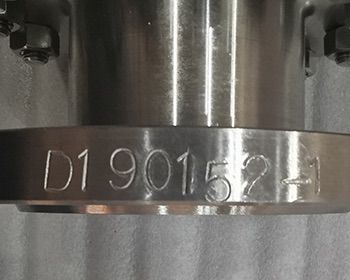

3 way ball valve manufacturerSeries Number



The ASME B16.5 code requires that the flangeEvery valve with
a unique identified number and Tag number from clients

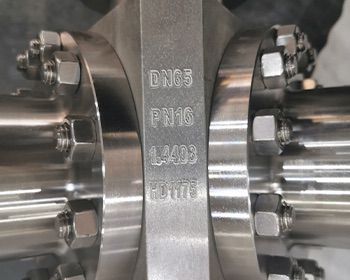

floating 3 way ball valveEvery valve in DBV with clear typecasting.




Our big size butterfly valves also can comply with the leakage class A.(Zero Leakage).
