Trunnion mounted stainless steel Ball valve CF8M Reduce bore

Product number:904L

Nominal diameter:DN100

Pressure range:PN16

Operating temperature:-70℃～280℃

Body material:Body: 904L

Applicable medium:Liquid

Operation method:Body: 904L

Live Chat Get Latest Quotation
PDF Download

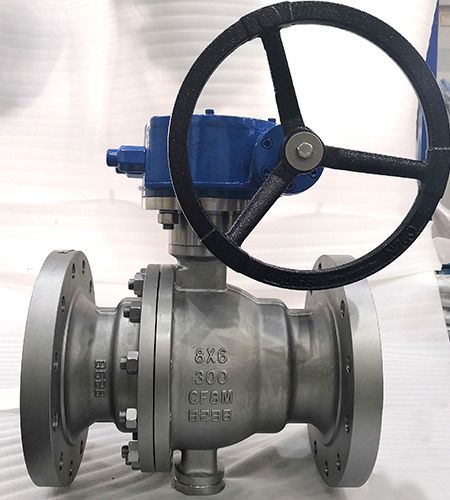

Trunnion mounted stainless steel CF8M Reduce bore Ball valve


1g Valve description
Trunnion mounted stainless steel CF8M Reduce bore Ball valve
Material:
Body: CF8M
Nominal Pressure
300#
Nominal Diameter:
8"X 6''
End Sealing:
RF
Face To Face:
ASME B16.10
Working Temperature:
-196℃～500℃
Test And Inspection:
API 598/ISO 5208
End Connection:
ASME B16.5
NACE:
NACE 0175
Certificate:
ISO9001, ISO14001, ISO28001, TS, CE,TUV

PS: We also can make products according to customer's drawing.


2g valve details

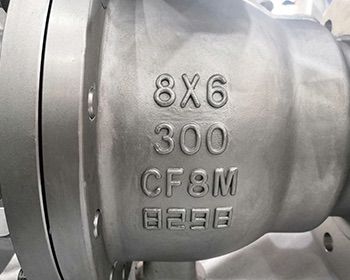

API 6D flanged ball valve manufacturer in ChinaMarking
Every valve in DBV with clear Marking on the valve body.

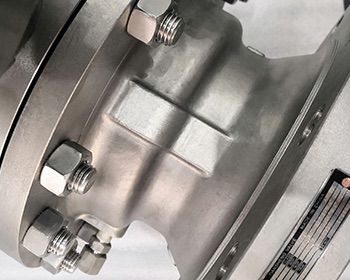

Flanged ball valve manufacturerBolt and Nut

For stainless steel body,we choose Bolt and nut with material B8M/8M

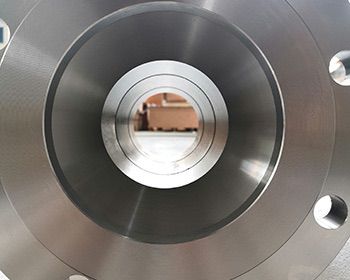

whole sale flanged ball valve manufacturerReduce bore(RB)


We can produce both reduce bore and full bore

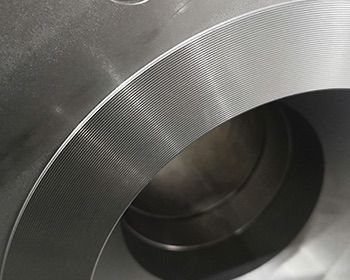

High quality flanged ball valve manufacturerFlange face finish



The ASME B16.5 code requires that the flange

face(raised face and flat face) has a specific

roughness to ensure that this surface be compatible with the gasket and provide a high quality seal.
