High pressure metal to metal WCB butterfly valve 300LB

Product number:904L

Nominal diameter:DN100

Pressure range:PN16

Operating temperature:-70℃～280℃

Body material:Body: 904L

Applicable medium:Liquid

Operation method:Body: 904L

Live Chat Get Latest Quotation
PDF Download

Product description:

Fully metal to metal butterfly valve;Body:WCB; Disc: SS316, Stem: SS316. Seat: Overlay STL

High pressure metal to metal WCB butterfly valve 300LB

Valve manufacturer description
Metal to metal butterfly valve

Name: Fully metal to metal butterfly valve
Material: Body:WCB; Disc: SS316, Stem: SS316. Seat: Overlay STL

Nominal Pressure: PN100
Nominal Diameter: DN300
End Connection: Flange
Structure: Triple Eccentricity
Operation: Worm gear
Valve type: Industrial Valve
Working Temp.: -29℃~+200℃
Design Standard: API 609
Test / Inspection: API 598/ISO 5208

Face To Face: API 609
 PS: We also can do according to customer's requirements.
Details

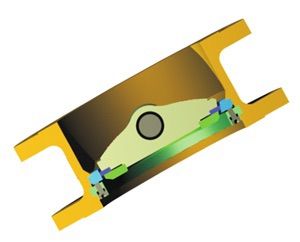

two bidirectional





Two directional flow

The pressure of bidirectional flow could be afforded to achieve no flow restrictions on the installation.

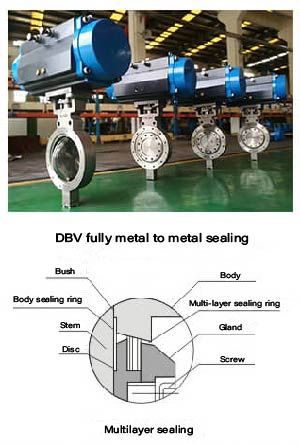

triple eccentric butterfly valve supplier












DBV fully metal to metal sealing


Its advantages are anti-wear, anti-erosion and long service life,etc. DBV butterfly valve suitable for mant poor
working conditions such as high  pressure and high temperature.

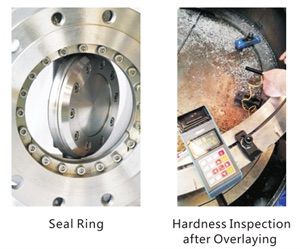

metal to metal renewable seat butterfly valve





Renewable seat and seal ring
The design of  renewable seat and seal ring could avoid the valve damaged caused by the wear
of seal ring and reduce the cost of use
