Worm gear WCB DN500 Wafer Triple Eccentric Butterfly Valves. We are very specilizing in wafer type butterfly valve.Warmly welcome the inquiry.

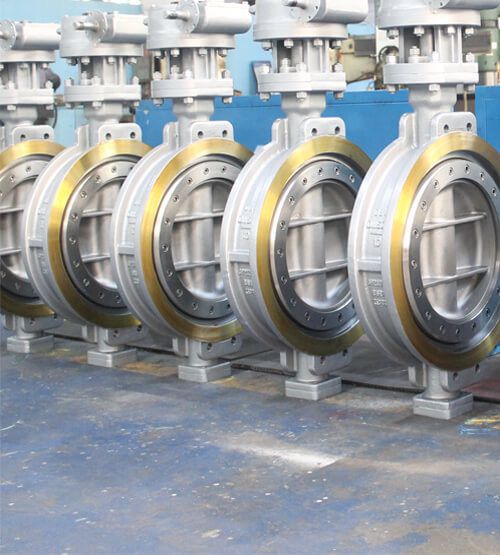

Worm gear WCB DN500 Wafer Triple Eccentric Butterfly Valves



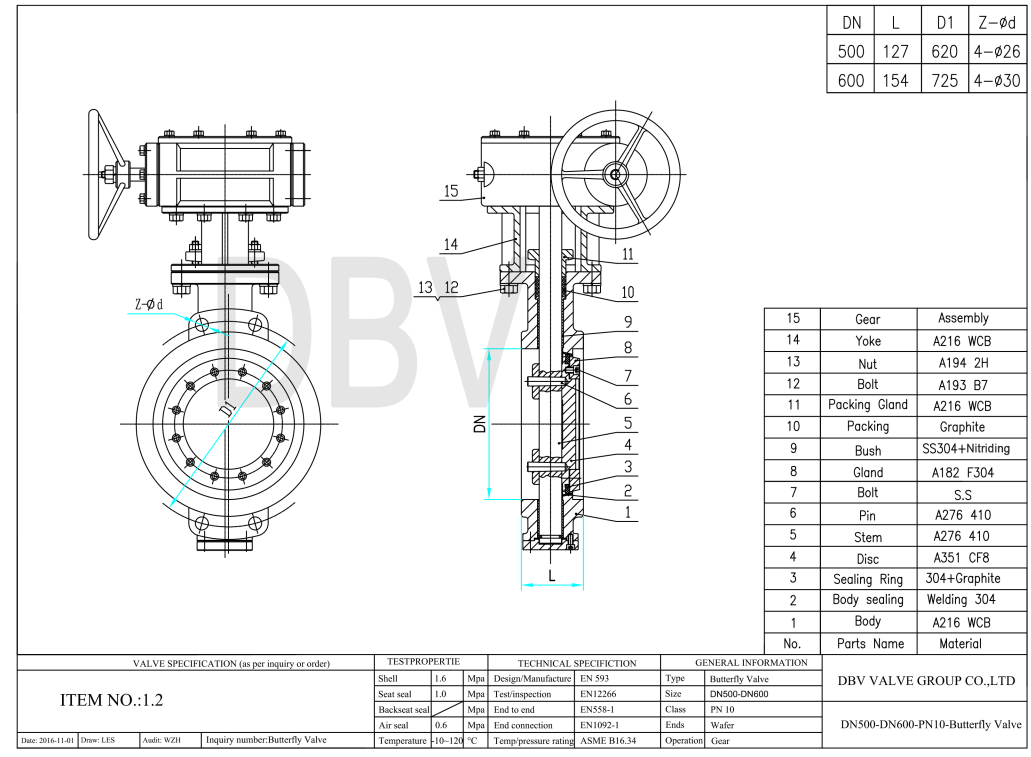

Name:	WCB DN500 Wafer Triple Eccentric Butterfly Valve
Material:	Body: WCB; Disc: CF8, Stem: 13Cr. Seat: overlaid 304
Nominal Pressure:	PN10
Nominal Diameter:	DN500
End Connection:	Wafer
Structure:	Triple Eccentricity
Operation:	Worm gear
Valve type:	Industrial Valve
Working Temp.:	-10℃~+120℃
Design Standard:	EN593
Test / Inspection:	EN12266
Face To Face:	EN 558-1

    PS: We also can do according to customer's requirements.












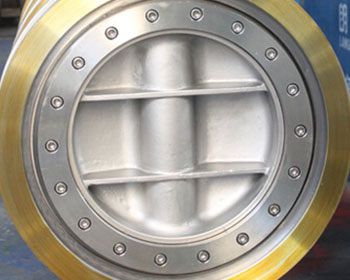

Oval Turtle Disc Design


DBV butterfly valve adopts the unique oval turtle
advantages  such  as   high   strength,   good  flow
truss  structure  design  of  the  disc.  It  has several
characteristics and low flow-resistance coefficient.

















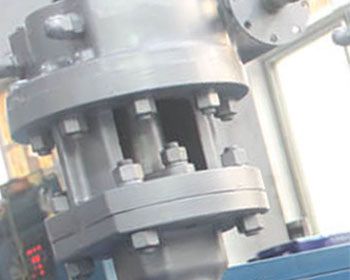

Up Blow-out Proof Design


DBV butterfly valve adopts the design of stepped shaft
with  the  gland.  It  is effectively that prevent the stem
blows out from the top.

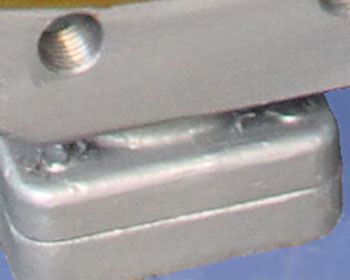

Internal Snap Ring and Bottom Cover Design


DBV butterfly valve adopts the unique stem design.
The  bottom  of the  stem is slotted. The ring  is  embed
-ded to prevent the stem blow out. Then, the snap
bottom  cover  plays  a  same role. This design  suits
for the valve which is larger than four inches.







  Triple Eccentricity Design Features
  The stem is offset on both the X (1)and Y (2) axis of the valve's
center line. This produces a cam一like motion. The third offset (3)
consists of an inclined conical  profile machined into  the  valve
sealing  surface. This allows rotary engagement and disengagement
of   the   seat   and   seal   ring without interference.  All  rubbing
between  seat  and seal ring is thereby eliminated. Once the seat
and seal ring are  fully  engaged  torque  is applied in order to
create a bi一directional, zero leakage,  metal-to一metal seal. For
this reason, triple offset valves are often defined as "torque" seated
rather than”position” seated as in the case of resilient or high performance products.


  Multi-layer disc sealing ring





Multi-layer disc sealing ring adopts ss304 and graphite laminated, sealing
by the inside graphite, applied for low and middle pressure, as recycle water,
swage treatment, city building, etc.
